Product information:
Model NO.: Q11F-16C

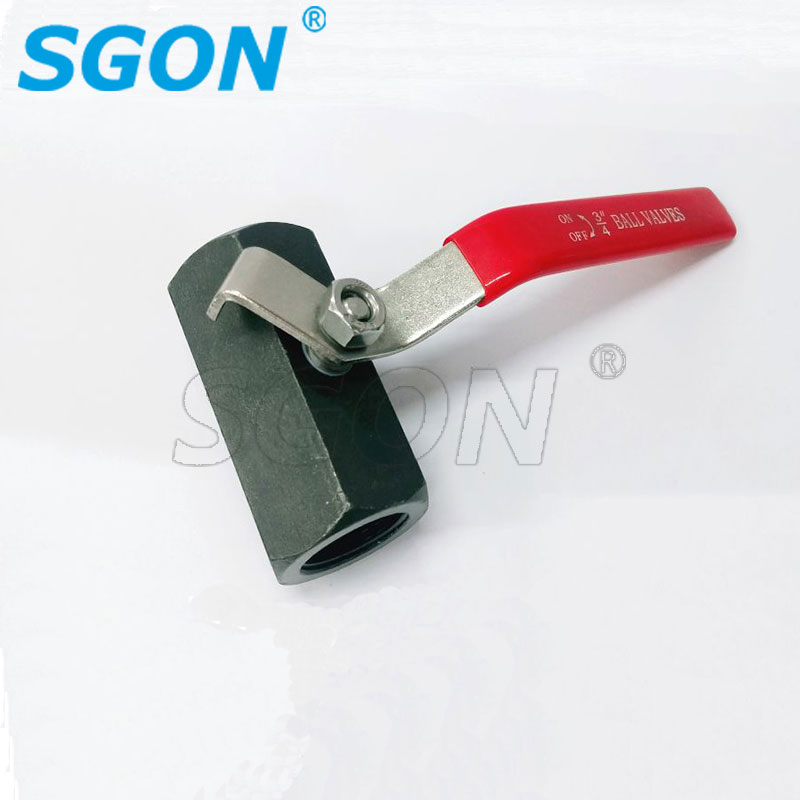

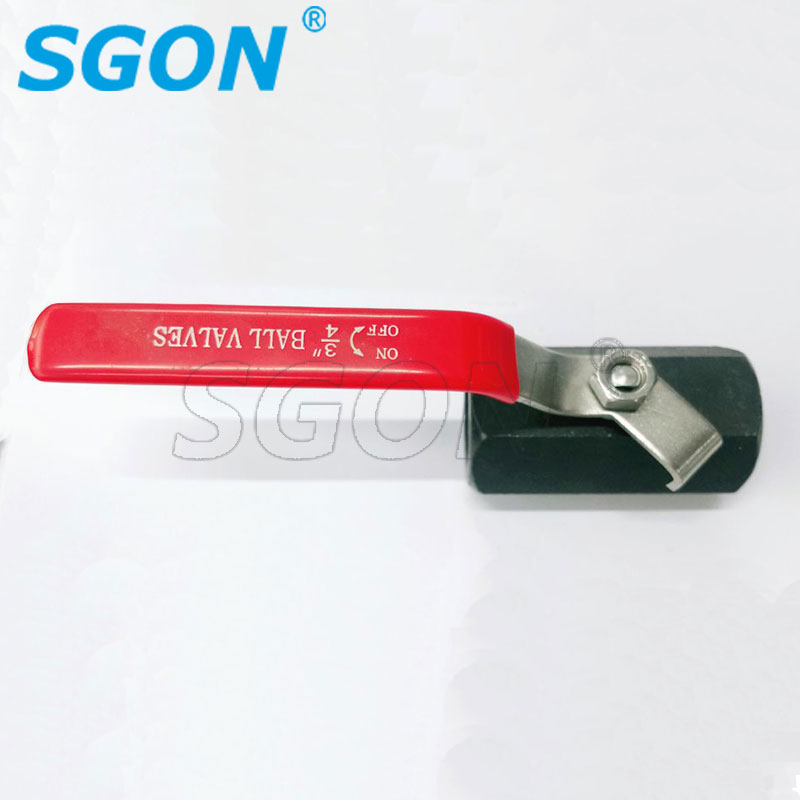

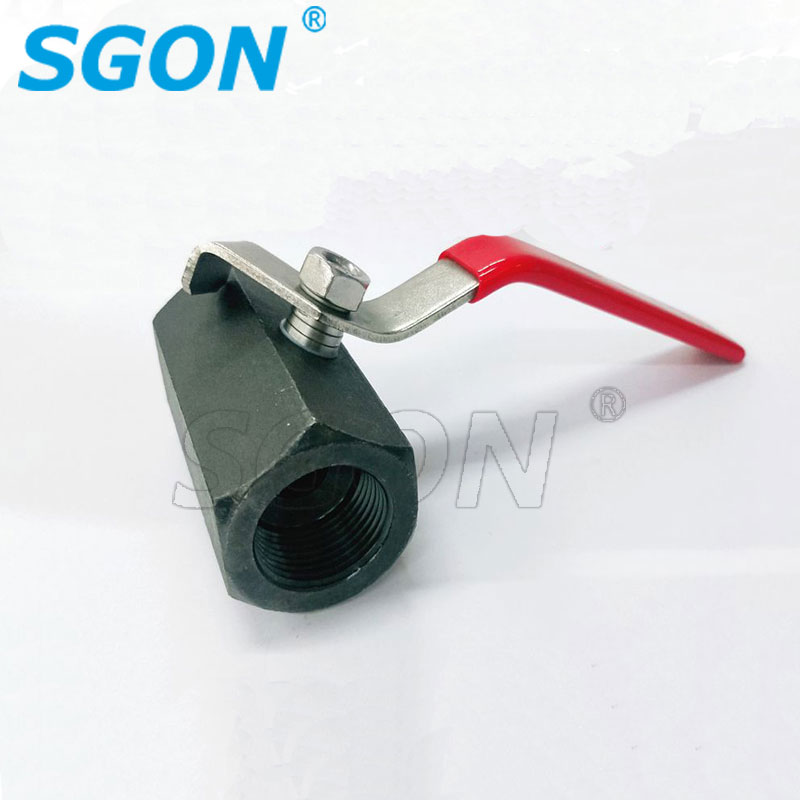

Type: Floating Ball Valve
Function: Atmospheric Valve
Application: Industrial Usage, Water Industrial Usage, Household Usage
Certificate: CE Certificate
Transport Package: Standard Plywood Case
Specification: 1/4"--4"
Origin: Wenzhou, Zhejiang, China
Locking Device: Option
Working Pressure: 1000PSI (PN63,6.4Mpa)
Features:
1. Adjustable stem packing
2. Pure Teflon seals and seats
3. Blow-out proof stem, solid ball as per customer request
4. 100% leakage tested at 100 psi air under water
5. Lever Operated
|
1.SEAT |
PTFE |
|
2.BALL |
SS304 |
|
3.BODY |
WCB |
|
4.THRUST WHASHER |
PTFE |
|
5.STEM |
SS304 |
|
6.PACKING |
PTFE |
|
7.NUT |
SS201 |
|
8.NUT |
SS201 |
|
9.WASHER |
SS201 |
|
10.CAP |
WCB |
|
11.HANDLE |
SS201 |
|
12.HANDLE COVER |
PVC |
Shipment:
We will deliver goods within 30-60 days after we received your order from Ningbo port or Shanghai Port. But the delivery time is according to the size of your order.
After the goods arrive at your port, if there is any problem, please contact us in time. If it is found that the problem is caused by our fault, we will solve it in time.
If any quality problem occurs during the use of the product within one year, we can replace the product for you free of charge.
Q: Are you factory or trading company?
A: We are an integrated company of industry and trade and we have our own factory.
Q: Could you give the sample to me for free before ordering?
A: We usually can give out sample in 3 days, but the shipment charge usually paid by your side, the fee of it will be rebound when we have formal order.
Q: If your company can be customized?
A: Yes, we can according to customer's drawing or sample.
