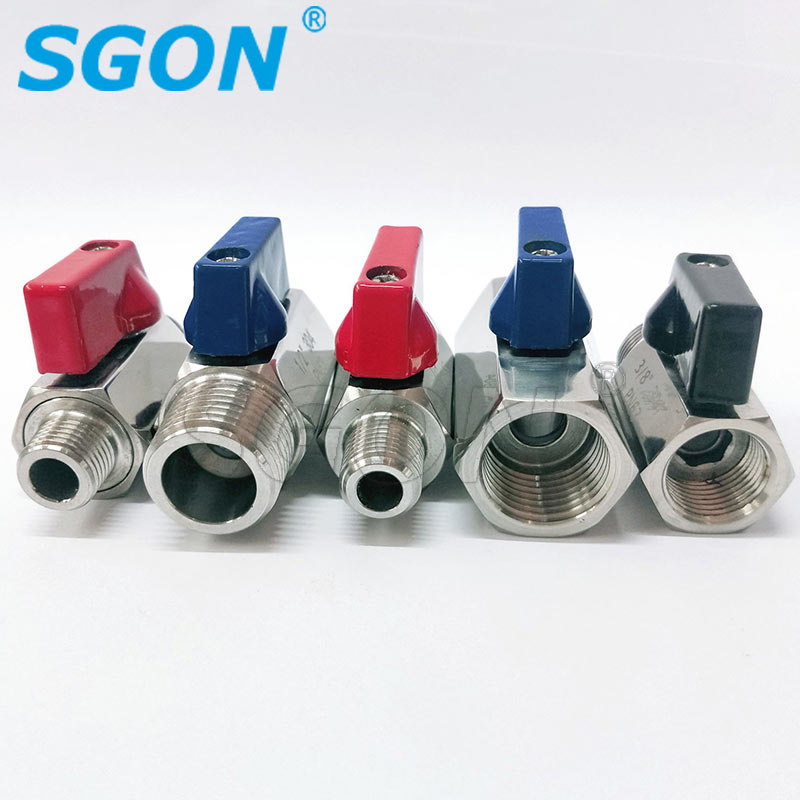

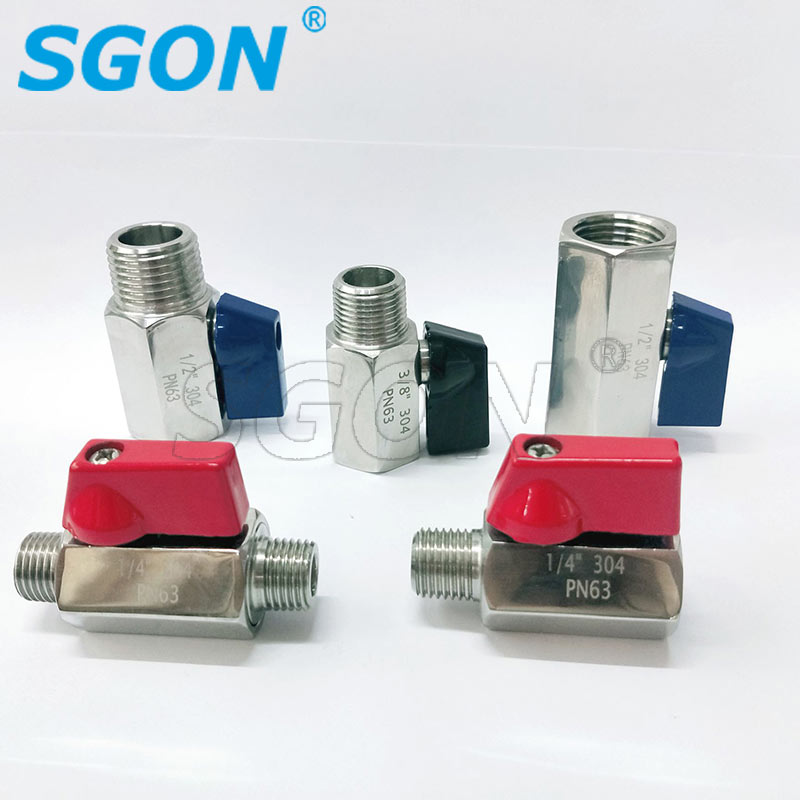

One Piece M/M F/M F/F Threaded Screwed 6.4mpa 1-Pc Mini Ball Valve

Features:

1. Investment casting body

2. Working pressure 800/1000 psi for W.O.G.

3. Adjustable stem packing

4. Pure Teflon seals and seats

5. Blow-out proof stem, solid ball as per customer request

6. 100% leakage tested at 100 psi air under water

7. Lever Operated

8. Working pressure: 1.6Mpa~6.4Mpa

Payment:

We usually accept 30% in advance by T/T. The balance should be paid before shipment or after seeing the copy of B/L. But it also depends on the size of your order.

Quality Control:

The production follow the valve standard strictly. Production line used by PEDDI aim to improve the quality.

We test each piece valve during the production, quality control in forge, machine, assemble and all the process in order to guarantee the quality.

We can provide 24 hours service and all the details that you want to know about our product . And also we will answer the questions you raise and help you to choose the right goods.

When you receive the goods, once you found any damage, please contact with us as soon as possible. We can provide 1 year after-sales guarantee.

Product Information:

Structure: Floating Ball Valve

Function: on/off Valve

Temperature: -20~150℃（PTFE）、-20~232℃（PPL）

Standard: ANSI BS DIN JIS EN GB NF

Application: Industrial Usage, Water Industrial Usage, Household Usage etc.

Stainless steel Type: SS304(SUS304, CF8, SCS13, 1.4301)

SS316(SUS316, CF8M, SCS14, 1.4401)

Handle Sleeve Color: Depend on Your Required

Trademark: As required

Package: Plywood Case

Specification: 1/4"-3/4"(DN8-DN20)

Origin: Wenzhou, Zhejiang Province

Screw (option): Male/Male Screwed

             Male/Female Screwed

             Female/Female Screwed

Type of thread: BSPP(DIN2999, DIN259, RP)

             BSPT(RC, ZG)

             NPT(Z)
