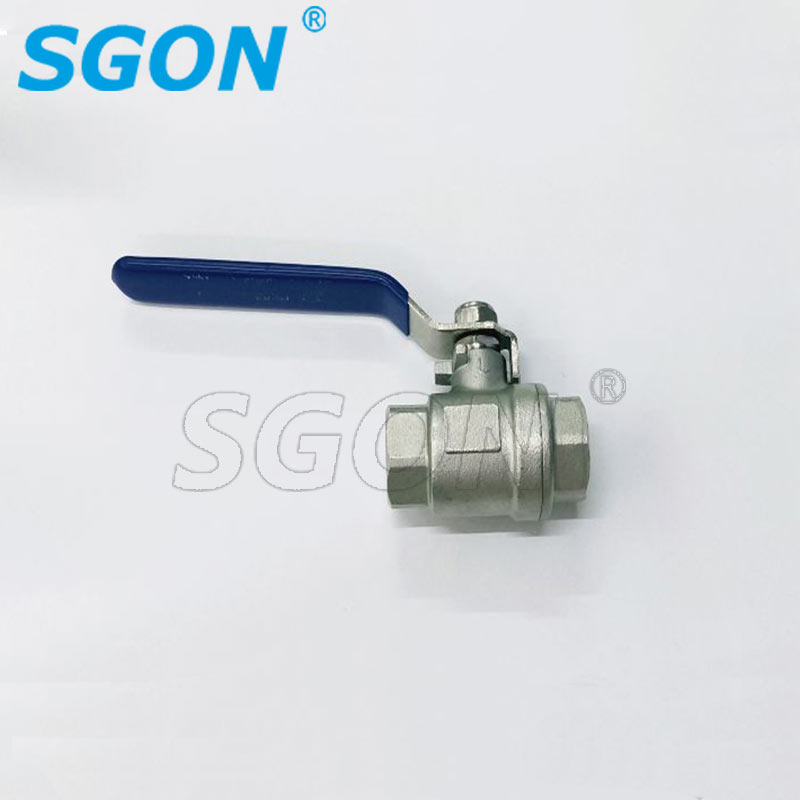

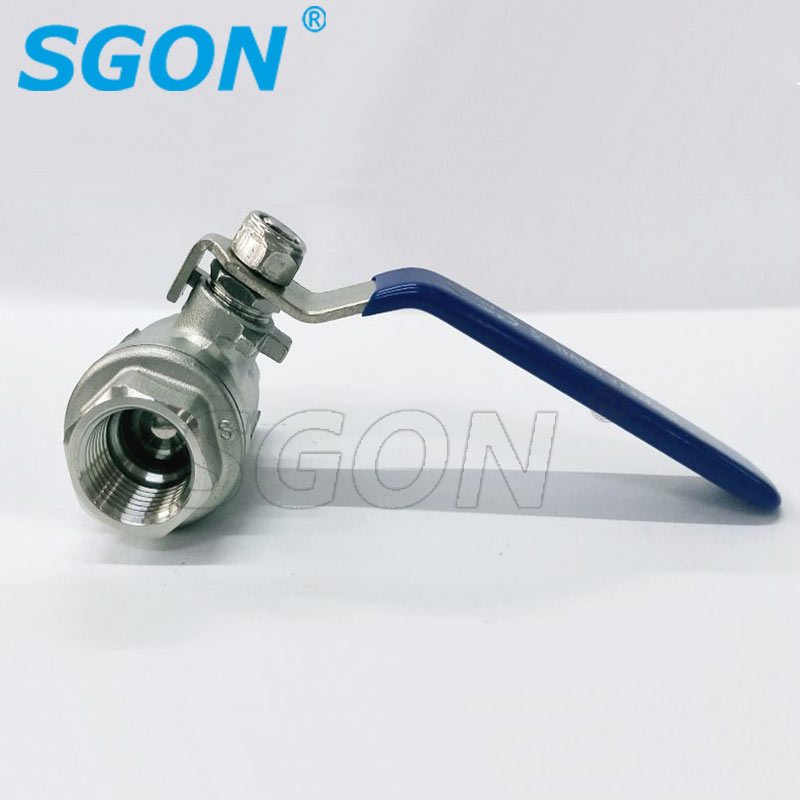

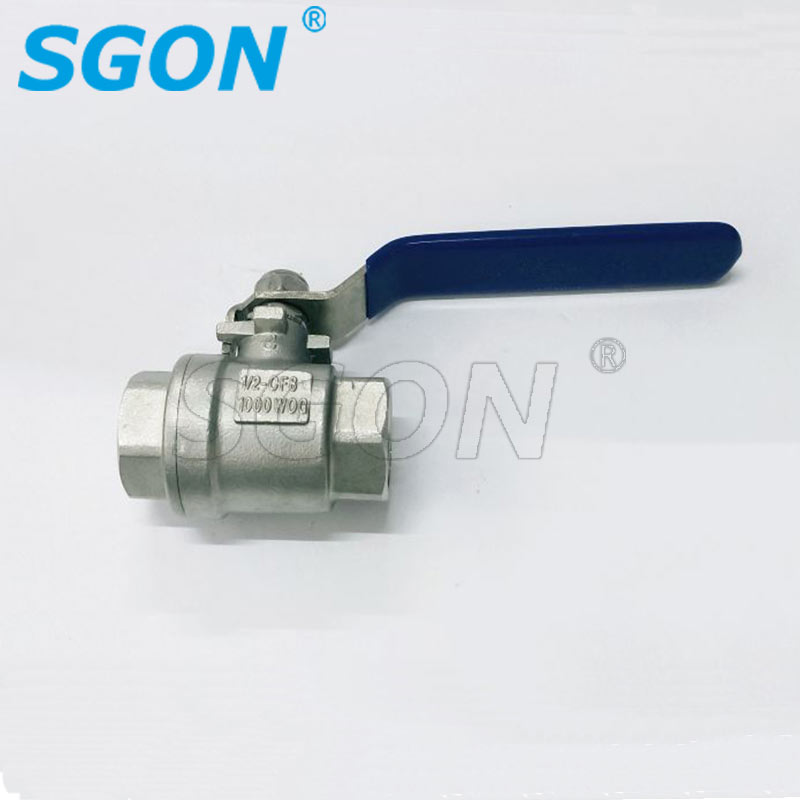

Product Details:
Function: on/off Valve
Type of Port: Full Port
Type: Floating Ball Valve
Material: WCB, CF8(SS304), CF8M(SS316), SS201
Size: 1/4"-4"(DN8--DN100mm)
Working Pressure: 1000WOG/2000WOG
Temperature: Normal Temperature
Connection Form: Thread
Driving Mode: Manual
Application: Industrial Usage, Water Industrial Usage, Household Usage
Connection Ends: NPT/BSP/BSPT/DIN259/DIN2999
Locking Device: Option
Company Profile:
Wenzhou SGON Valve Co., Ltd is specialized in manufacturing stainless steel and carbon steel: ball valve, gate valve, globe valve, check valve, Y type strainer,etc. Our product manufacture is strict according to GB, API, DIN, JIS and other international valve standard. Our product is wide used in oil and gas, chemical, metallurgy, electric power, environmental protection, food, pharmaceutical, construction, etc.
Competitive Advantage:
1. We have our own factory, so we can provide you the best offer and we can provide the goods as your requests.
2. We pay much attention to technology renovation, process improvement, structure optimization and quality improvement.
3. We have excellent after-sales service system, providing timely and optimal service, which help you to win the market.
Structural Features:
1. No friction when opening and closing. This function completely solves the problem that the traditional valve affects the seal due to the friction between the sealing surfaces.
2. Top-mounted structure. The valve installed on the pipeline can be directly inspected and repaired online, which can effectively reduce the stopping of the device and reduce the cost.
3. Single valve seat design. It eliminates the problem that the medium in the valve cavity affects the safety of use due to abnormal pressure increase.
4. Low torque design. The valve stem with special structure design can be easily opened and closed with a small handle.
Body: SS201/SS304/SS316/WCB
Ball: SS201/SS304/SS316/WCB
Bonnet: SS201/SS304/SS316/WCB
Stem: SS201/SS304/SS316
Handle: SS201/SS304/SS316
Nut: SS201/SS304/SS316
Sealing: PTFE/PPL/RPTFE
Handle Cover: As your request
Specific materials can be customized according to customer requirements.
We will deliver goods within 30-60 days after we received your order from Ningbo port or Shanghai Port. But the specific delivery time is according to the size of your order.
We usually accept 30% in advance by T/T, the balance should be paid before shipping or against copy of BL.
1. Can you manufacture different standards valves according to customer requirements?
A: Yes. We can manufacture ANSI, DIN, JIS standards for different pressure & temperature & size according to different needs. So if you have any special request, you can e-mail or call us directly.
2. How to deal with product maintenance?
A: We have CE product certification, product quality can be guaranteed. If there is any damage to the product, please contact us to send the product to us by mail. We will repair the product and send it back. Or directly after the product is repaired in the local area, we will issue an invoice to repair the product at our expense.
3. Where are your delivery ports?
A: There are two main delivery ports in our company. Ningbo Port and Shanghai Port. But if you have other special requests, please contact us as soon as possible. We will try our best to satisfy you.
