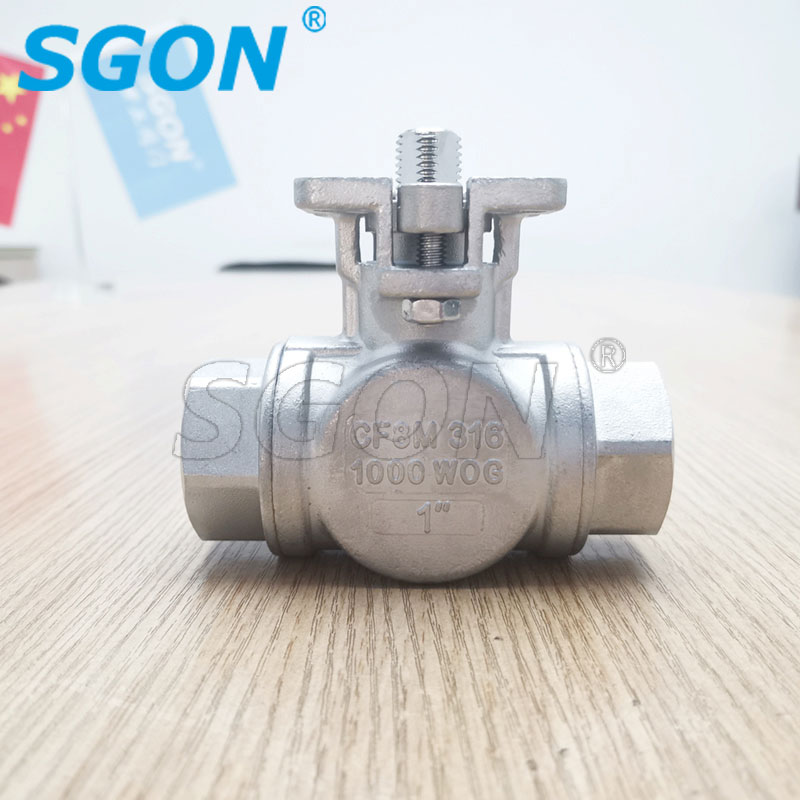

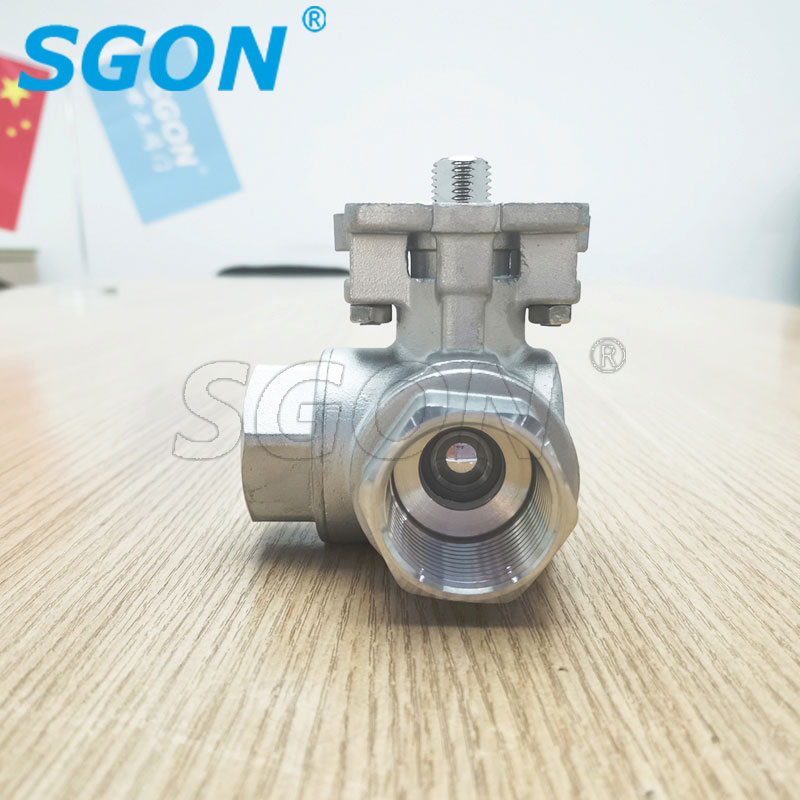

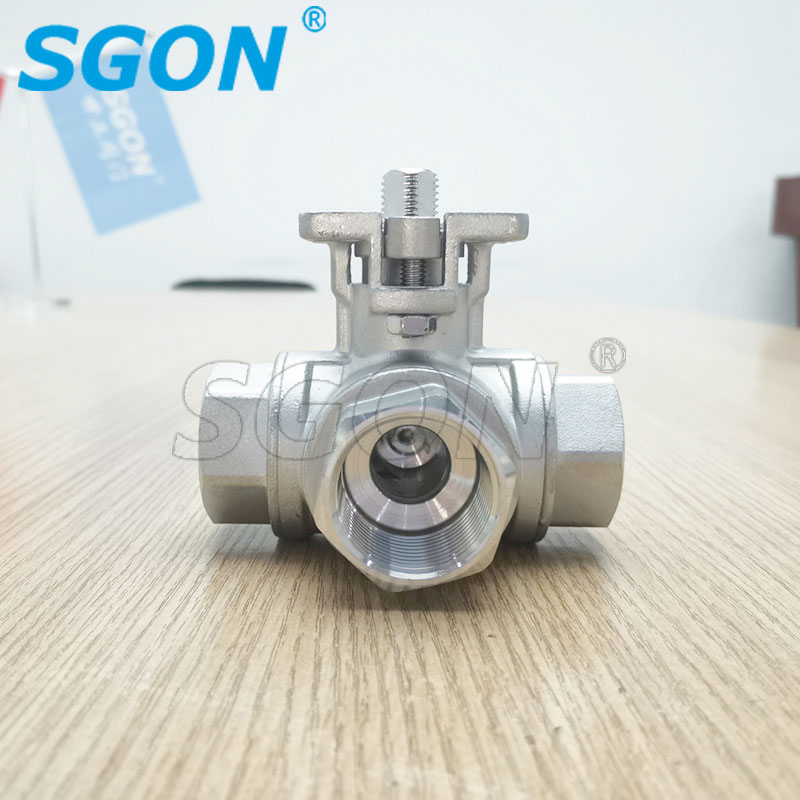

Three Way 1000WOG Ball Valve With ISO5211 Mounting Pad

Product Features:

Three-way ball valve in the structure of the use of integrated structure, four-side valve seat sealing type, flange connection less, high reliability, design to achieve lightweight

Three-way ball valve long service life, flow capacity, small resistance

Three-way ball valve is divided into two types of single action and double action according to the action type.
The characteristic of single action type is that once the power source fails, the ball valve will be in the state required by the control system

Float ball/Trunnion Ball option.

L type and T type port for choice.

Blow-out stem proof design.

PTFE/RPTFE/PPL seat seal (Seat seal material could be decided by customer's request or according to valve's medium & temp. condition).

Fire-proof and anti-static design if need.

Why you chose us:

1. We have our own factory. We can produce products according to your requirements and provide you with the most reasonable quotation.

2. The company pays attention to technical transformation, process improvement, structure optimization and quality improvement.

3. We have a perfect after-sales service system to provide timely and optimal services to help you win the market.

Our statement:

1. After you place the order, we will communicate with you according to the quantity of the order, and then choose to complete the delivery by sea or air in a short time.

2. Our workers actively pursue high-quality production and continuous innovation of products. Our products have CE certificate, reliable quality and reasonable quotation.

3. We have a complete production inspection and after-sales process. We are an efficient foreign trade team, you can trust our service.

After-Sales Services:

We make the following commitments to product quality and we try our best to serve our customers. If there is any problem with the product,

we accept no reason to return or exchange within 15 days. However, the buyer shall ensure that the returned goods meet the original conditions.

If the goods are damaged or lost in return, the buyer will be responsible for the expenses incurred by the damage or loss of the products.

Q: Does the valve leak during operation?

A: As long as the installation instructions are strictly followed and the valve is installed, leakage will not occur.

Model NO.: Q15F-16P & Q14F-16P

Port: Ningbo or Shanghai, China

Payment Terms: T/T

Port: T Port, L Port

Structure: Floating Ball Valve

Function: on/off Valve

Material: CF8(SS304), CF8M(SS316), SS201

Size: 1/2"-4"(DN15--DN100mm)

Pressure: 1000WOG/1000PSI(1.6-6.4Mpa)

Temperature: Normal Temperature

Pad: ISO5211 Pad

Suitable Medium: Water, Gas, Oil, Air and Some Corrosive Liquid

Application: Industrial Usage, Water Industrial Usage, Household Usage

Connection Form: Thread

Seat Material: PTFE, RPTFE, RPTFE, PPL etc.

Available Connection: NPT, BSP, BSPT, DIN259/2999

Operation: Manual, Pneumatic, Electric

Handle: Lever Handle, Locking Device Handle Upon Request.

Transport Package: Cartons and Plywood Cases
