what is the difference between ball valve and gate valve

understanding the differences between ball valves and gate valves is crucial for selecting the most appropriate valve for a given application. By considering factors such as design, operation, flow characteristics, and application requirements, engineers and technicians can make informed decisions to ensure the efficient and reliable operation of fluid control systems.

I. Introduction
Valves play a crucial role in various industries and fluid control systems. Two commonly used types are ball valves and gate valves. Understanding their differences is essential for choosing the right valve for specific applications. In this article, we will explore the distinctions between ball valves and gate valves in terms of their design, operation, flow characteristics, and suitable applications.

II. Design
Ball Valve Design

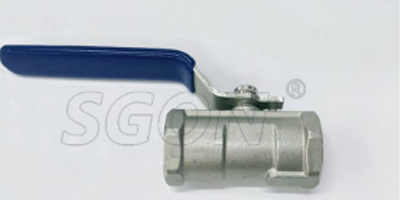

A ball valve consists of a spherical ball with a hole through the center. The ball is placed within a valve body and rotates to control the flow of fluid. The ball is usually made of metal or plastic, and the valve body can be of various materials such as brass, stainless steel, or PVC.
The seals in a ball valve are typically made of elastomers like Teflon or rubber, which provide a tight seal when the ball is in the closed position. The handle or actuator is attached to the ball to allow for easy operation.
Gate Valve Design
A gate valve has a flat or wedge-shaped gate that slides up and down within the valve body to open or close the flow path. The gate is usually made of metal, and the valve body is often cast iron, steel, or bronze.
The sealing is achieved by the gate fitting tightly against the valve seat when closed. Gate valves may have a threaded stem or a rising stem design, where the stem moves up and down with the gate, allowing for visual indication of the valve's position.

III. Operation
Ball Valve Operation
Ball valves are known for their quick and easy operation. A quarter-turn of the handle (90 degrees) is usually sufficient to fully open or close the valve. This makes them ideal for applications where rapid shut-off or flow control is required.
They offer good resistance to wear and tear due to the smooth rotation of the ball. The operation is relatively effortless, and the valve can be opened or closed even under high pressure differentials.
Gate Valve Operation
Gate valves require more effort to operate compared to ball valves. To open or close a gate valve, the gate needs to be lifted or lowered, which can be a slower process, especially for larger valves.
They are typically used in applications where the valve is not required to be opened or closed frequently. The slow operation helps to prevent water hammer and sudden pressure changes in the pipeline.

IV. Flow Characteristics
Ball Valve Flow Characteristics
Ball valves provide a relatively unrestricted flow path when fully open. The hole in the ball allows for a high flow rate with minimal pressure drop across the valve. This makes them suitable for applications where maximum flow is desired, such as in water supply systems or gas pipelines.
However, in the partially open position, the flow characteristics can be nonlinear, and the flow rate may not be precisely controlled. This is because the shape of the opening changes as the ball rotates.
Gate Valve Flow Characteristics
Gate valves offer a straight-through flow path when fully open, similar to a pipe, resulting in a low pressure drop. They are good for applications where a full and unobstructed flow is needed, like in large-diameter water mains.
In the partially open position, the flow rate can be more precisely controlled compared to ball valves. The gate can be adjusted to different heights to regulate the flow, although the flow control is not as fine as some other types of valves like globe valves.

V. Applications
Ball Valve Applications
Ball valves are widely used in residential and commercial plumbing for applications such as controlling the flow of water to faucets, toilets, and showers. They are also commonly used in HVAC systems for regulating the flow of refrigerant or hot and cold water.
In industrial settings, ball valves are used in chemical processing plants, oil and gas pipelines, and food and beverage industries due to their ability to handle corrosive fluids and provide reliable shut-off.
Gate Valve Applications
Gate valves are often used in water and sewage treatment plants, where they are used to control the flow of large volumes of water. They are also suitable for applications where the valve needs to be fully open or closed for long periods, such as in fire protection systems or main water supply lines.
In power plants, gate valves are used to control the flow of steam and other high-pressure fluids.

VI. FAQs
Q1: Which valve is better for high-pressure applications?
A: Both ball valves and gate valves can be used in high-pressure applications, but the choice depends on the specific requirements. Ball valves are generally better for applications where rapid shut-off and good resistance to wear are needed, while gate valves are suitable for applications where the valve is not frequently operated and a straight-through flow path with low pressure drop is essential.
Q2: Can ball valves and gate valves be used interchangeably?
A: In some cases, they may be used interchangeably, but it is not recommended without considering the specific application. For example, if precise flow control in the partially open position is required, a gate valve may be more suitable. On the other hand, if quick shut-off and a relatively unrestricted flow when fully open are important, a ball valve would be a better choice.
Q3: How do I maintain ball valves and gate valves?
A: For ball valves, regular inspection of the seals and the ball for signs of wear or damage is important. Lubrication of the stem and the ball mechanism may be required to ensure smooth operation. Gate valves should be checked for proper alignment of the gate and the seat, and the stem should be lubricated to prevent sticking. In both cases, any signs of leakage should be addressed promptly.
