Application and Features:
The vertical check valve is strictly designed and manufactured according to the standard. The valve flap moves up and down along the center. The bush is made of special materials with good wear resistance and small friction coefficient. The action is flexible and reliable. The sealing performance is excellent.
Vertical check valve products are widely used in pipelines in various working conditions such as petroleum, chemical, pharmaceutical, and power industries.
Shipment & Payment:
We will deliver goods within 30-60 days after we received your order. But the delivery time is according to the size of your order.
We usually accept 30% in advance by T/T. The balance should be paid before shipment. If you’d like other payment practice, you can contact us to get more details.
Packing:
After the quality inspection of the finished product, each valve is individually packed by PP bag. The number of cartons is determined according to the specification of the valve.
After the final spot check and inspection, the cartons are sealed with labels and packed into plywood boxes.
Product Information:

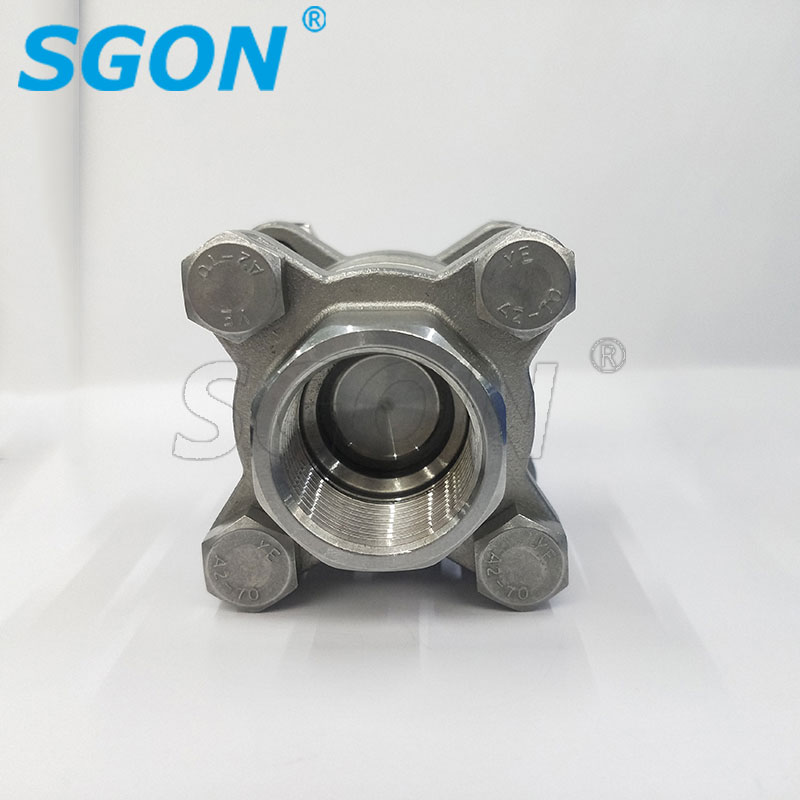

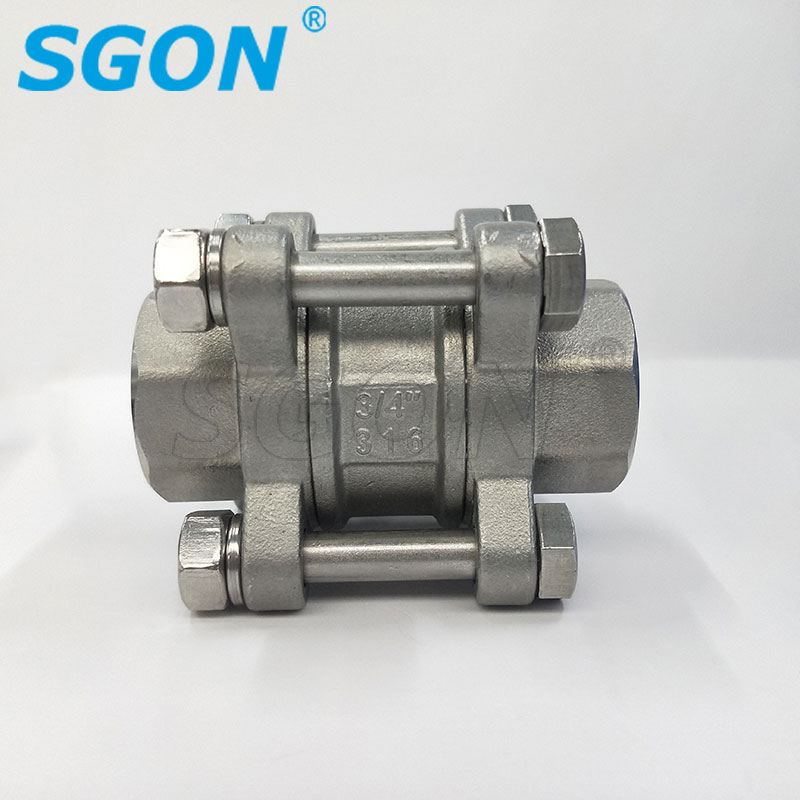

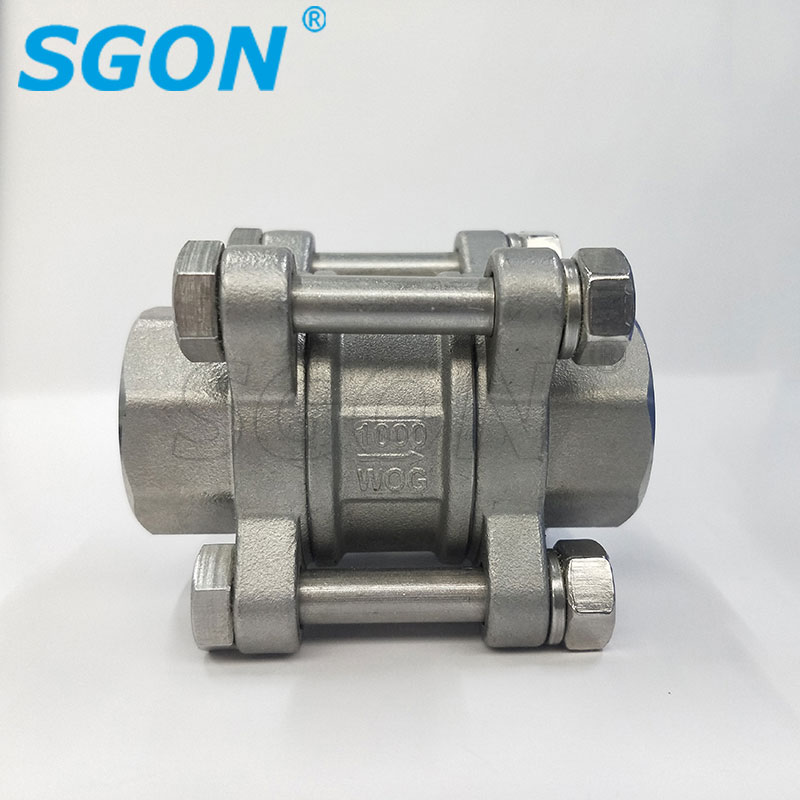

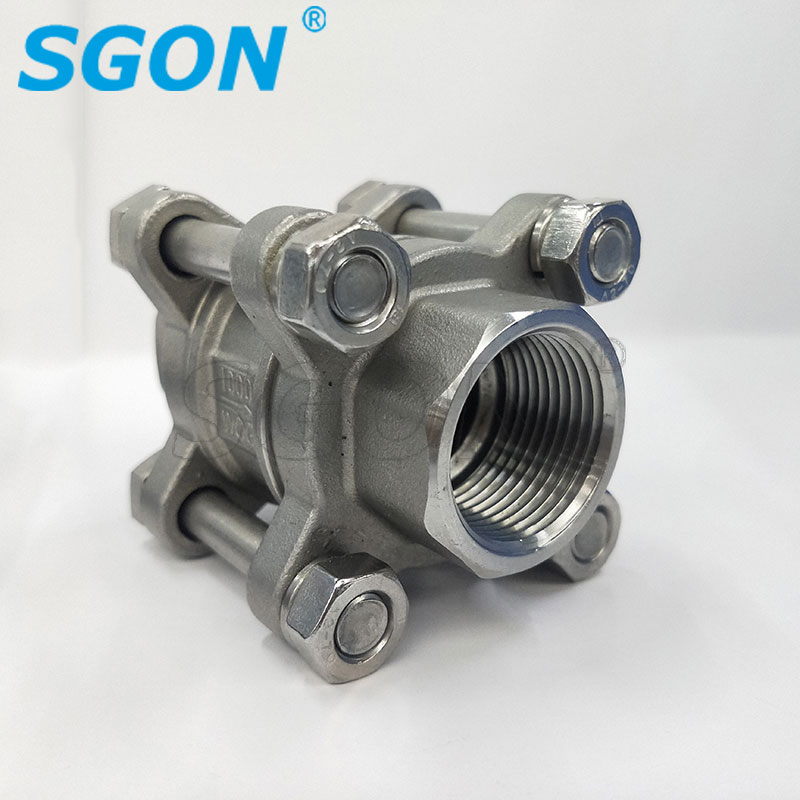

Name: Inside Threaded Vertical Check Valve
Model NO.: H12W
Size Range: 1/2" ~ 4"(DN15-DN100)
Materials: SS304/SS316
Pressure Rating: 1000PSI
Temperature of Media: Normal Temperature
Screwed Type: BSPDIN259/DIN2999
Port: Ningbo or Shanghai, China
Payment Terms: T/T
Sealing: PTFE/RPTFE/PPL
Guarantee Period: 12 months
Product Standard:
Product design standard: ASME B16.34
Wall thickness standard: ASME B16.34 GB12224
Thread standard: ANSI B 1.20.1, BS 21 / 2779, DIN259 / 2999, ISO228 BSPT BSPP NPT
Inspection standard: API 598 EN12266
Product Description:
The vertical check valve is normally closed. Due to the pressure of the medium at the inlet end of the pipeline, the valve is overcome to overcome the resistance of the spring and the valve is opened. When the medium pressure at the inlet end is lower than the outlet end, the spring pushes the spool towards the valve seat to close the valve, preventing the medium from flowing back, so it acts as a check. Because the valve uses a spring to support the spool, it can be installed vertically or horizontally.
1. Are samples available to be sent with free?
A: It depends on what product you need. You can contact us for particular answer.
2. Can we put our own logo on the product?
A: Certainly. We have our own professional factory, can customize products. About specific content you can contact us.
3. Why for the same product your price is different than others?
A: The product looks the same as others, but the detail are not the same. Our products use many metals, and the thickness makes the weight and price distinct from others. If the weight and thickness of product is the same as others, the price can be no different.
4. Do you accept ODM or OEM?
A: Yes, of course. We can produce the products you need according to your requirement.
5. What's your packing?
A: We packed each item with PP bag, and then pack them in to the cartons.And we use Plywood Box to transport them. If you want pack the goods with other material, you can contact us directly.
