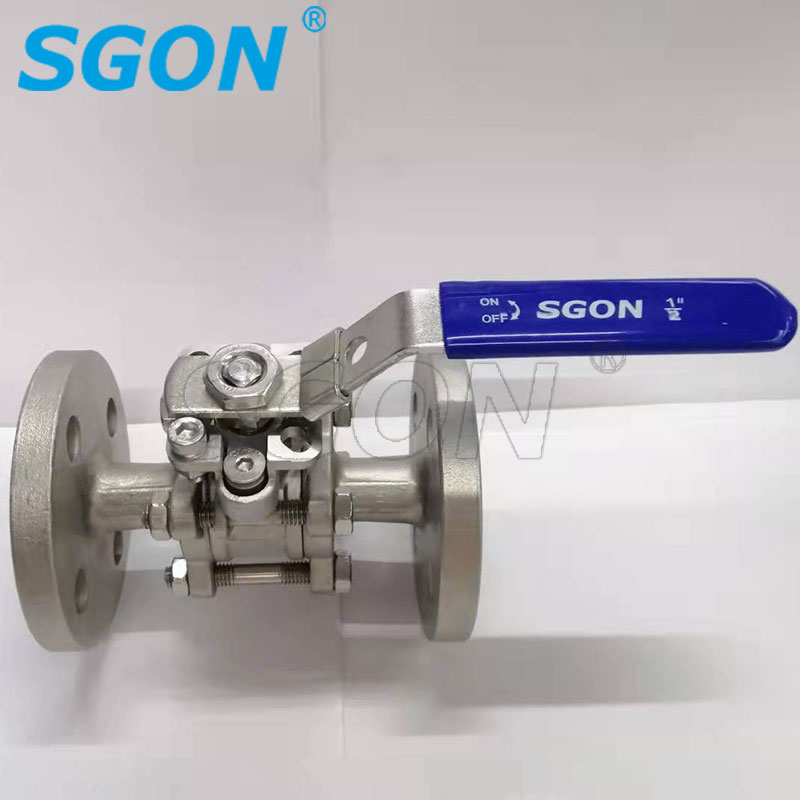

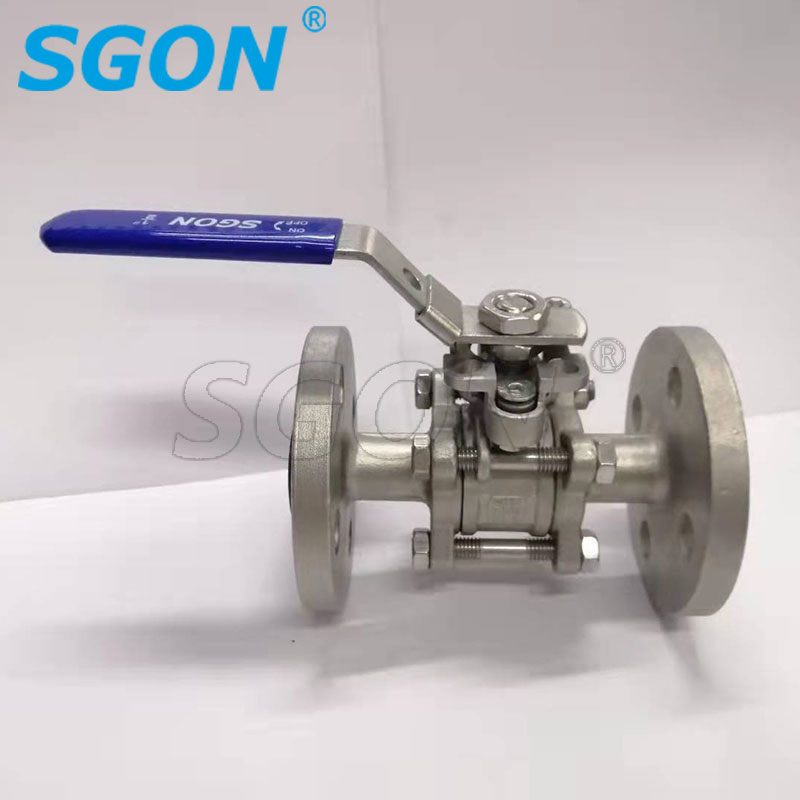

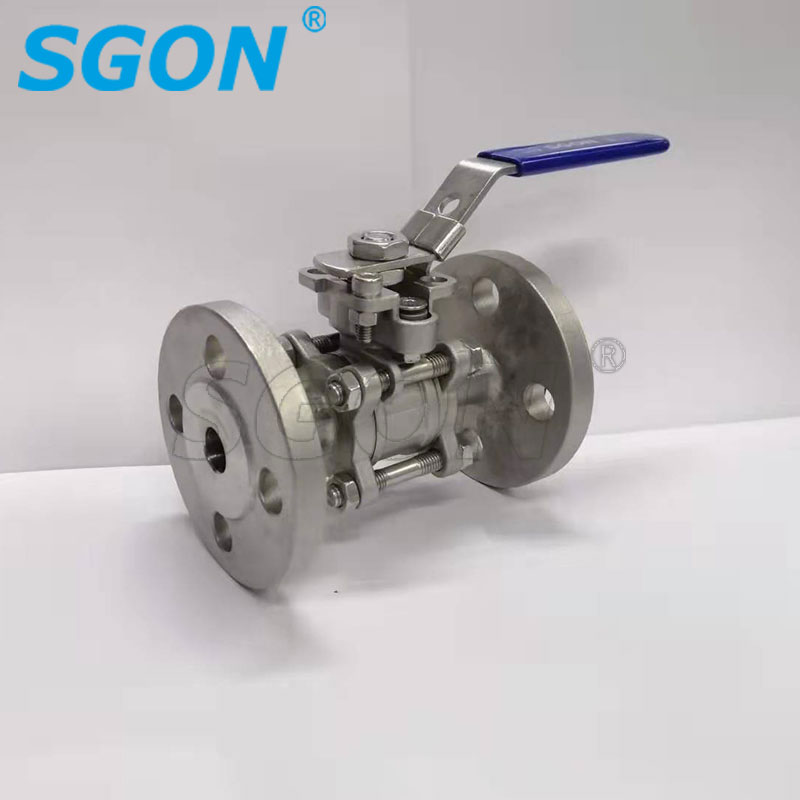

High Quantity 3PC Flanged Ball Valve With ISO5211 Mounting Pad

Features:

(1) The fluid resistance is small, and its resistance coefficient is equal to that of the pipe segment of the same length.

(2) It is simple in structure, small in size and light in weight.

(3) Three - piece flange ball valve according to its channel position can be divided into straight - through, three - way and right - Angle.

Packing:

Step1: Plastic cover protected connection ends

Step2: Plastic bag around each valve

Step3: Inner boxes protected valves

Step4: Put into outside cartons

Step5: Stick details of products on cartons

Step6: All cartons in Plywood cases

Pre-sale: We will follow up the customer's demand one on one.

Sales: We will follow up the whole process of transportation from the packaging to achieve on time, quality, quantity to the customer.

After-sales service: There is a specially-assigned person to collect the feedback information of the product, so as to follow up 24 hours a day.

Product information:

Name: 3PC High Platform Flanged Ball Valve

Size: 1/2"-4"(DN15-DN100)

Material: SS304（CF8,1.4301,SCS13）/SS316（CF8M，1.4401,SCS14）

Pressure：PN40

Dimension Standard: DIN3202-F1

Internal form: Full Port

DIN Flanged End

Applicable Medium: Water / Oil / Gas / Some corrosive liquids

Driving Mode: Manual

Delivery Port: Ningbo or Shanghai

Payment Term: T/T or L/C

With Locking Devices
