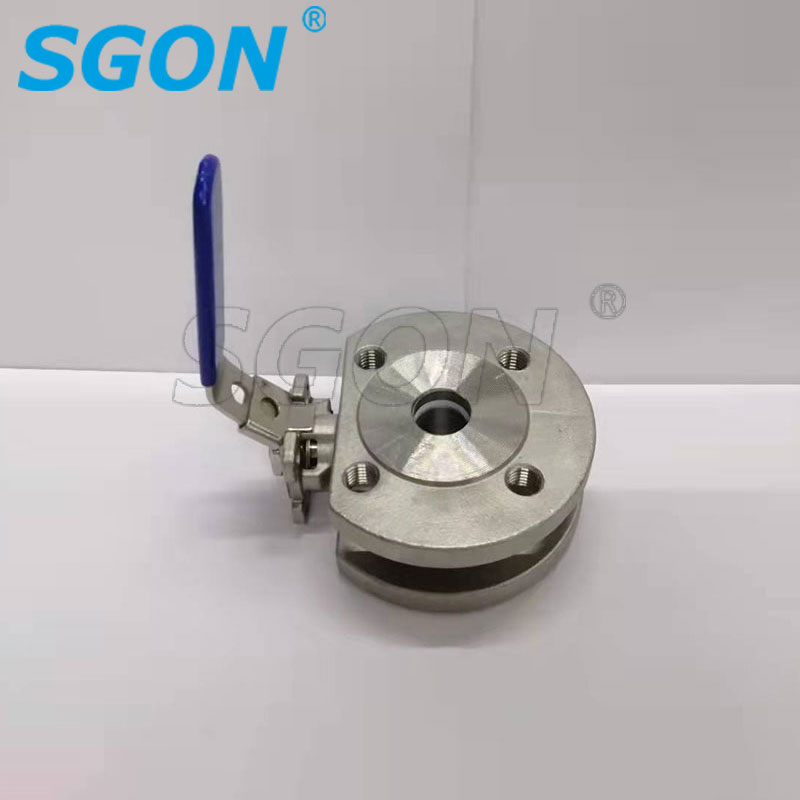

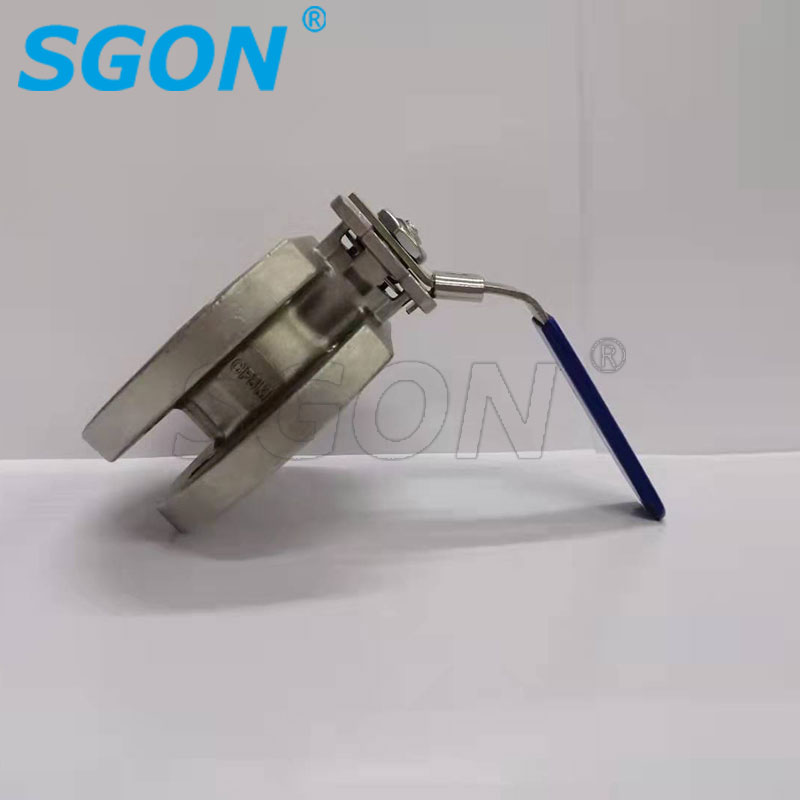

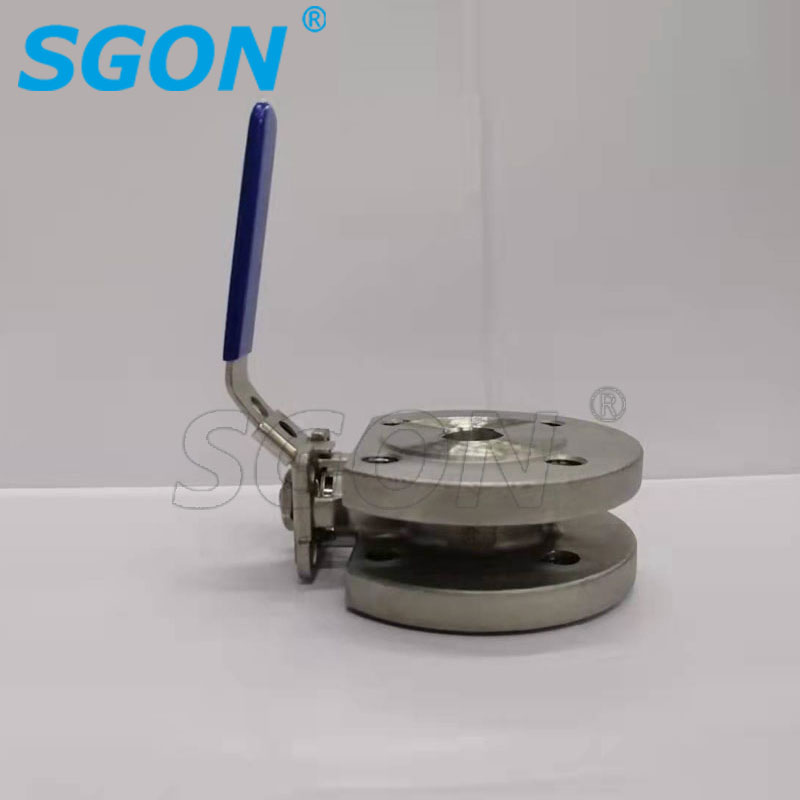

Italy Type DIN Flanged Ball Valve With ISO5211 Mounting Pad

DIN Wafer Type Flanged Ball Valve


Description:

Wafer ball valves are widely used in pipeline systems in the petroleum, chemical, pharmaceutical, food and other industries to cut or pass through media in pipelines. According to their structural length, wafer type ball valves can be classified into a normal type and a thin type. Compared with other types of ball valves, they are mainly compact, small in size, light in weight and reliable in sealing. The direction of flow of the medium is not limited and the fluid resistance is small. Quick opening and closing, easy to operate. In order to meet the requirements of users and systems, wafer ball valves can be equipped with automatic actuators such as electric actuators and pneumatic actuators for remote automatic control.

Product Information:

Structure: Floating Ball Valve

Function: on/off Valve

Temperature: -20~150℃（PTFE）、-20~232℃（PPL）

Standard: ANSI BS DIN JIS EN GB NF

Application: Industrial Usage, Water Industrial Usage, Household Usage etc.

Stainless steel Type: SS304(SUS304, CF8, SCS13, 1.4301)

SS316(SUS316, CF8M, SCS14, 1.4401)

Handle Sleeve Color: Depend on Your Required

Trademark: As required

Package: Plywood Case

Specification: 1/4"-4"(DN8-DN100)

Origin: Wenzhou, Zhejiang Province

Locking device (option)

Type of thread: BSPP(DIN2999, DIN259, RP)

BSPT(RC, ZG)

NPT(Z)

Our statement:

1. After you place the order, we will communicate with you according to the quantity of the order, and then choose to complete the delivery by sea or air in a short time.

2. Our workers actively pursue high-quality production and continuous innovation of products. Our products have CE certificate, reliable quality and reasonable quotation.

3. We have a complete production inspection and after-sales process. We are an efficient foreign trade team, you can trust our service.

Features:

Blow-out Proof Stem

Anti-Static Device for Ball-Stem-Body

Pressure Balance Hole in Ball Slot

2 Belle vile Washer to Self-adjust Packing

ISO 5211 Direct Mounting Pad for Easy Automation

Locking Device Spring Handle , New Design

Fire-Safe Design Available

Design standard: ASME B16.34,API 608

Wall Thickness standard: EN12516-1

Flange End:ASME B16.5 CLASS 150/300, DIN 2653 PN10-PN40, JIS B2238 10K/20K

Inspection & Testing:API 598,EN 12266

We make the following commitments to product quality and we try our best to serve our customers. If there is any problem with the product, we accept no reason to return or exchange within 15 days. However, the buyer shall ensure that the returned goods meet the original conditions. If the goods are damaged or lost in return, the buyer will be responsible for the expenses incurred by the damage or loss of the products.

Q: Does the valve leak during operation?

A: As long as the installation instructions are strictly followed and the valve is installed, leakage will not occur.
