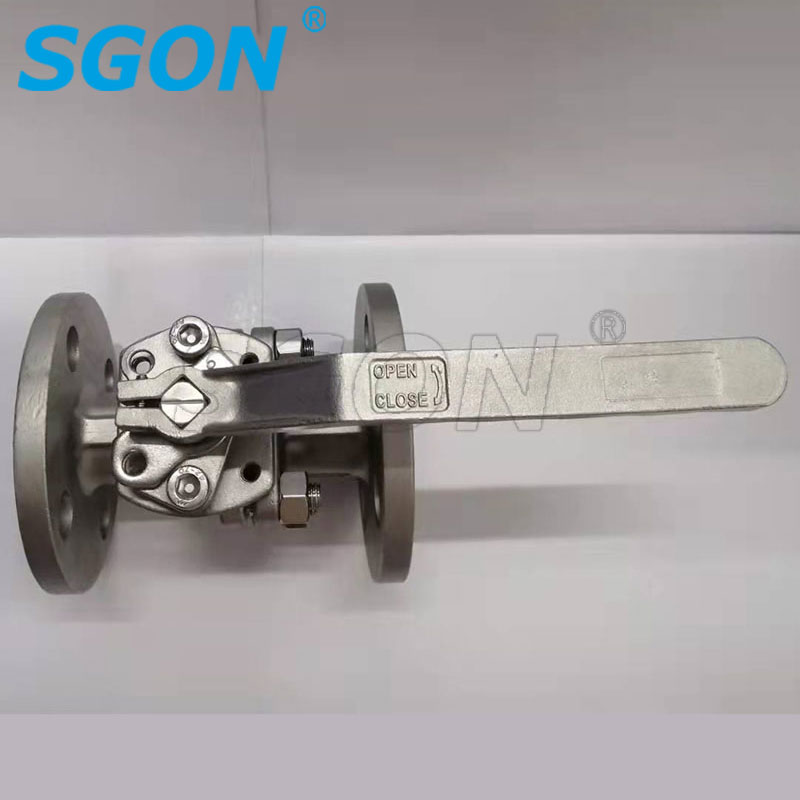

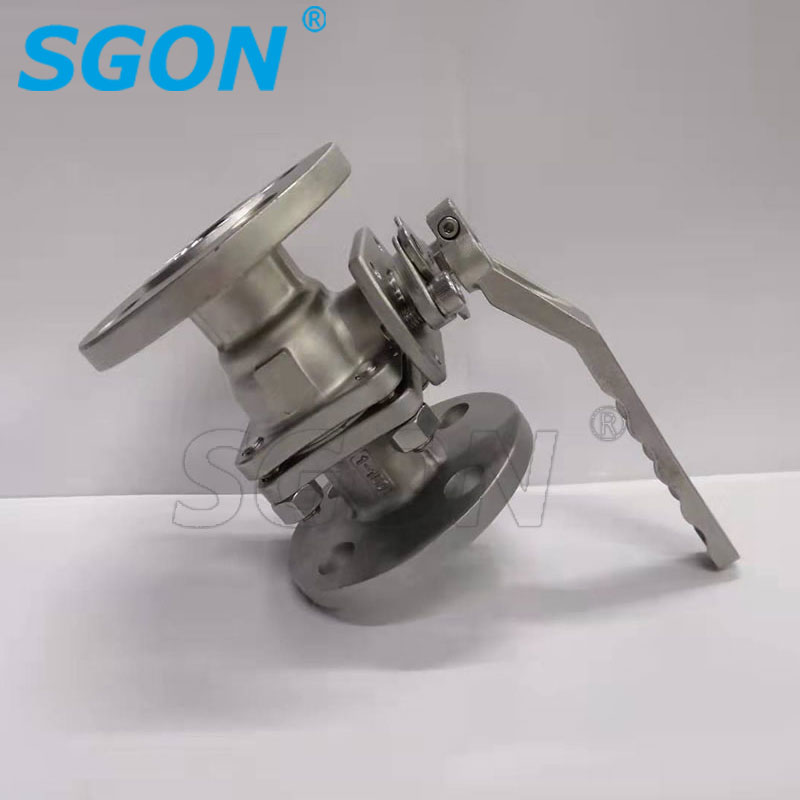

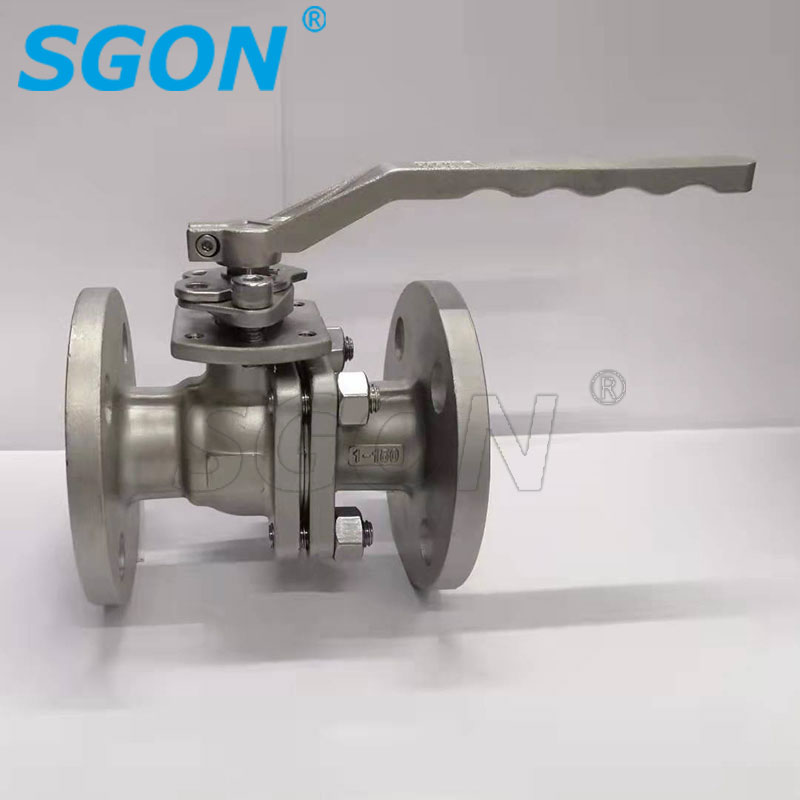

2PC ANSI Flanged Ball Valve With Explosion-Proof and Anti-Blowing Design

Material
SS201/SS304/SS316/WCB
Pressure
150LB/300LB
Size
1/4'' ~ 8'' (DN8-DN200)
Type
FULL PORT
Connection
FLANGE
Payment
TT/LC
Port
Ningbo/Shanghai
Get a inquiry
Main Parts and Material

Body: A351-CF8M/SCS14A/1.4408/A351-CF8/SCS13A/1.4308/A216-WCB/SCPH2/1.0619

Cap: A351-CF8M/SCS14A/1.4408/A351-CF8/SCS13A/1.4308/A216-WCB/SCPH2/1.0619

Ball: SUS316/SUS304

Hexagon nut: SUS316/SUS304

Elastic gasket: SUS304

Cap gasket: PTFE/PPL

Ball seat: PTFE/RPTFE/PPL

Stem: SUS316/SUS304

O-Ring: PTFE/RPTFE

Thrust washer: PTFE/RPTFE

Stem packing: PTFE/PPL

Stem Nut : SUS304

Washer: SUS304

Stop bolt SUS304

Screws SUS304

Advantage

Features:

Stem explosion proof design

All silica sol precision casting

Full port

Handle operation (optional lock handle)



Advantages:

1. Timely delivery time: We can delivery fast. It is usually 30-45 days after received the deposit.

2. Profession factory: We can produce kinds of products according to your sample.

3. We have CE certification.

4. Rapid response to your need within 24 hours.

5. That assure the quality and long life time.

Shipment&Payment

Shipment:

We will deliver goods within 30-60 days after we received your order from Ningbo port or Shanghai Port.
But the delivery time is according to the size of your order.



Packing:

Step1: Plastic cover protected connection ends

Step2: Plastic bag around each valve

Step3: Inner boxes protected valves

Step4: Put into outside cartons

Step5: Stick details of products on cartons

Step6: All cartons in Plywood cases

After-sales services

We provide the best service for you. Our after-sales service is open to each item and situation.

So, if you have any query of your goods, just let us know, we will solve it as soon as possible.

In order to give you the best service, you should check the goods once you receive the packages.

Product Description

Product information:

Name: ASTM 2PC Flanged Ball Valve

Size: 1/2"-12"(DN15-DN300)

Material: CF8/CF8M/WCB

Pressure: 150LB/300LB

Standard: API6D

End Connection: ANSI Flange

Application: Industrial Usage, Water Industrial Usage, Household Usage etc.

Payment Terms: T/T

Certificate: CE

Guarantee: 1 Year



Company information:

Our factory integrates precision casting, finishing and sales. It has a foundry in Hubei,

covering an area of ​​40,000 square meters. Has a finishing factory in Wenzhou, covering

an area of ​​5000 square meters.

And the company will provide a one-year product warranty period.

Recommended products
Frequently Asked Question

Q: What's the terms of payment?

A: We usually accept 30% of total amount in advance by T/T. The balance should be paid before shipment.
Sometimes it maybe different.

Q: If we are interested in your products, what should we do?

A: In order to recommend you suitable products, please provide detail information, like size, material, pressure and model.

Q: What’s about the discount?

A: There must be some discount, but the specific situation depends on your order quantity. Usually,
the more the order quantity, the greater the discount, or we can cooperate for a long time.
