Product Description

Product information:

Power: Manual

Structure: Ball

Main Materials: WCB

SS304（CF8，1.4301，SCS13, SUS304）

SS316（CF8M，1.4401，SCS14, SUS316 ）

Pressure Rating: 200WOG(200PSI, PN 16, 1.6MPA, 150LB)

Size Range: 1/2''-4''(DN15-DN100mm)

Applicable Medium: Water/Gas/Air and Some Corrosive Liquid

Application: Food & Beverage, Water & Waste water, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper, Mining, Boiler and Power Industries

Temperature of Media: -20-300 degree C

Screwed Type: BSPT, NPT, BSPP( DIN259, DIN2999)

Certificate: CE

Standard:

Product design standard: ASME B16.34

Wall thickness standard: ASME B16.34 GB12224

Thread standard: ANSI B 1.20.1, BS 21/2779, DIN259/2999, ISO228

BSPT BSPP NPT

Inspection standard: API 598 EN12266

Features:

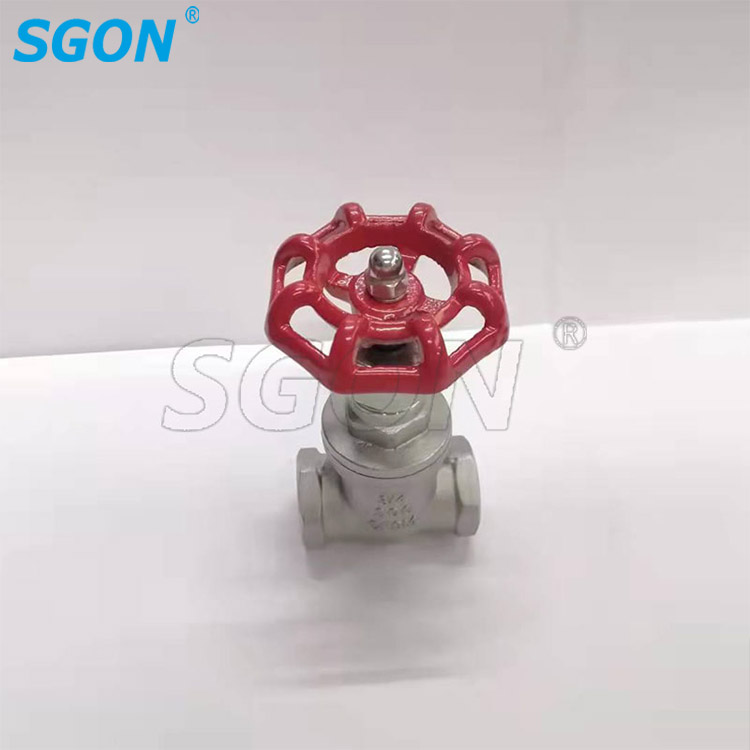

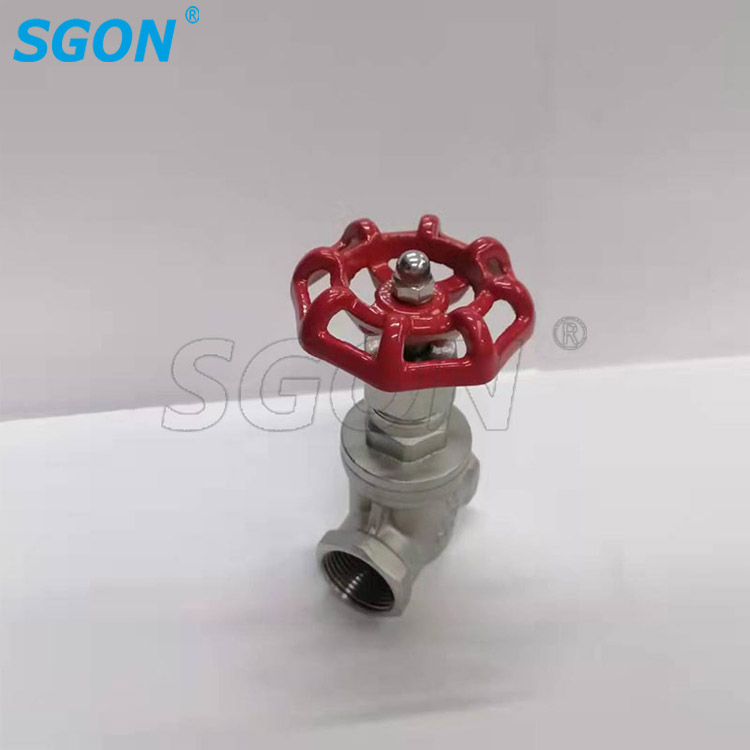

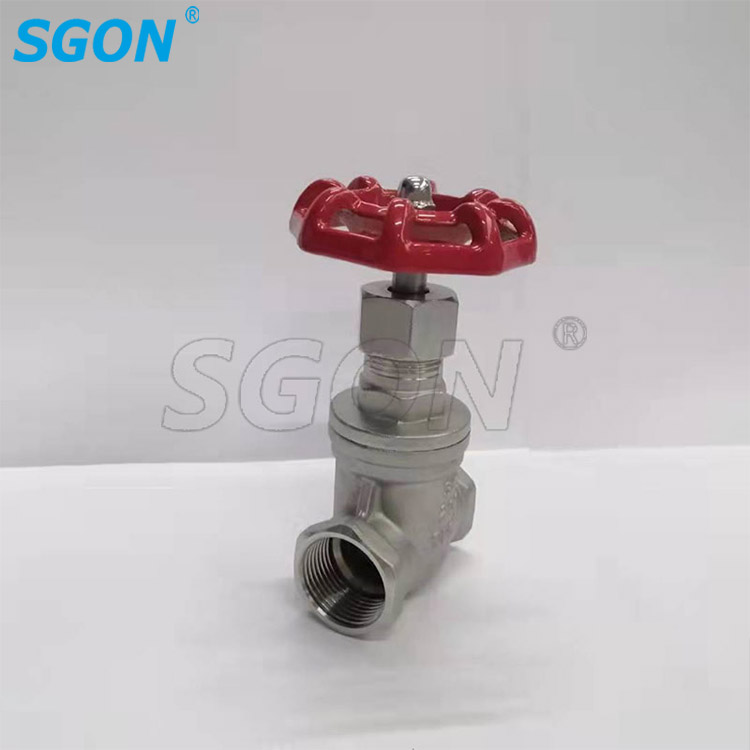

GATE VANA (ŞİBER VANA)

• Entirely silica sol precision forging

• Handle Wheel operated

Our advantage:

• Survival by quality and development by credibility. Quality first, customer upmost !

• 100% leakage tested at 100 psi air under water.

• Blow-out proof stem, ball are made of ss316 or customer request.

• Pure Teflon seals and seats.

• Can do OEM products.

Main Parts and Material

ITEM	PART	MATERIAL
1	Washer	WCB/SS304/SS316
2	Cap	WCB/SS304/SS316
3	Gland	WCB/SS304/SS316
4	Stem Packing	PTFE
5	Bonnet	WCB/SS304/SS316
6	Gasket	PTFE
7	Body	WCB/SS304/SS316
8	Stem	WCB/SS304/SS316
9	Disc	WCB/SS304/SS316

The specifications can be designed and satisfied for customers' special requirements.

Shipment&Payment

We will deliver goods within 30-60 days after we received your order from Ningbo port or Shanghai Port. But the delivery time is according to the size of your order.

We usually accept 30% in advance by T/T. The balance should be paid before shipment.

Frequently Asked Question

Q: Where is your factory located? How can I visit there?

A: Our factory is located in Wenzhou City, Zhejiang Province, China. You can fly to Wenzhou Airport directly. All our clients, from home or abroad, are warmly welcome to visit us.

Q: What is PEDDI’s core product?

A: We focus on producing high quality ball valves, check valves, gate valves, globe valves and pipe fittings.

Q: How can you guarantee the quality of products?

A: Firstly, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.
