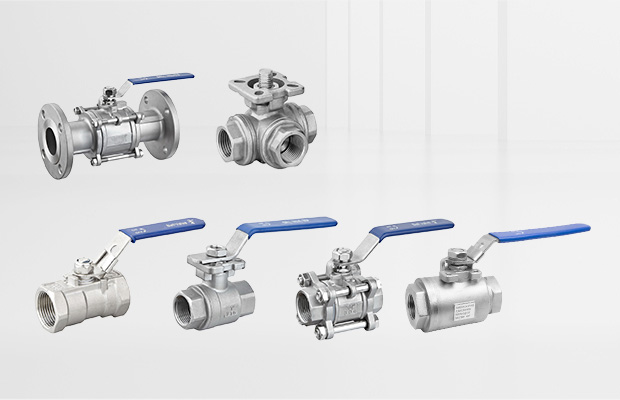

The ball valve is an efficient and reliable fluid control device, known for its simple design and excellent sealing performance. Its core part is a spherical valve core, which can be turned 90 degrees to achieve switch control, and the operation is intuitive and fast.

The valve's advanced sealing architecture integrates reinforced PTFE seats and stem packing, achieving bubble-tight shutoff compliant with API 598 standards. This bidirectional sealing capability ensures reliable performance in both high-pressure (rated to PN100/Class 600) and extreme temperature applications (-29°C to 200°C).

Key Features:

Zero-Leakage Integrity: Multi-stage stem sealing system with anti-blowout design

Operational Efficiency: Low-torque operation with <5 Nm actuation force (manual models)

Material Versatility: Available in 316SS, brass, and duplex steel configurations

Full Port Design: 100% bore geometry minimizes turbulence for viscous media

Multi-Driver Compatibility: Adaptable to manual lever, pneumatic actuator, or electric motor interfaces

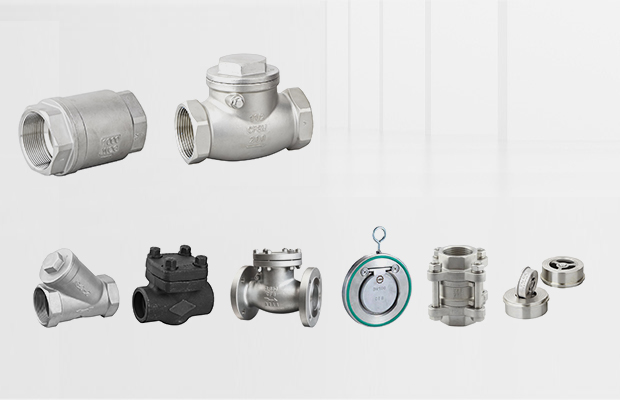

The SGON check valve is a precision-engineered, automated fluid control device designed to prevent medium backflow and ensure unidirectional flow in piping systems. By allowing fluid to flow in one direction only, it safeguards equipment and systems from potential damage caused by reverse flow, ensuring operational safety and stability. SGON check valve can be divided into lifting check valve and swing check valve.

Key Features:

Automatic Operation: Self-actuating design eliminates the need for external power, ensuring reliable performance during system operation

Robust Construction: Available in swing, lift, and dual-plate designs to suit various flow conditions and pressure requirements

High-Performance Sealing: Precision-machined sealing surfaces ensure tight shutoff, preventing backflow and leakage

Material Versatility: Options include stainless steel for corrosion resistance, carbon steel for cost-effective strength, and duplex steel for high-strength, high-corrosion applications

Wide Range of Connections: Flanged, threaded, wafer, and butt-weld end connections compliant with ANSI, DIN, JIS, and ASME standards

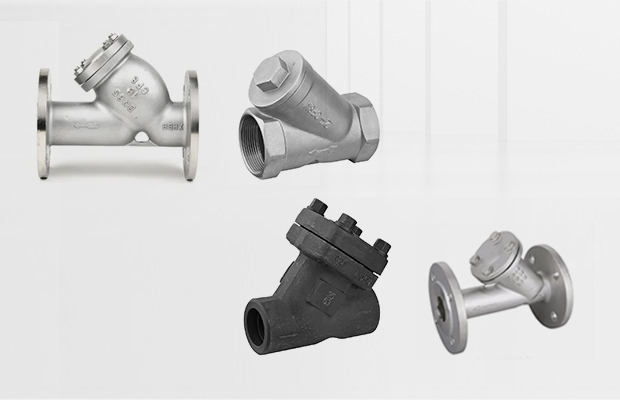

he SGON flange strainer is a critical fluid handling component designed to safeguard piping systems by removing solid particles and impurities from the media. Whether in industrial production, water treatment or air purification, filters can effectively extend equipment life, reduce maintenance costs, and improve the overall performance of the system.

Key Features:

Efficient Filtration: Available in Y-type and basket-type designs, with mesh sizes ranging from 0.5mm to 5mm to suit various filtration requirements

Robust Construction: Stainless steel models offer superior corrosion resistance, while carbon steel variants provide cost-effective durability

Flanged Connections: Compliant with ANSI B16.5, DIN EN 1092-2, and JIS B2220 standards, ensuring easy integration into existing piping systems

Easy Maintenance: Removable strainer baskets or screens allow for quick cleaning and replacement, minimizing downtime

High-Temperature and High-Pressure Capability: Rated for temperatures up to 200°C and pressures up to Class 600 (ANSI) or PN100 (DIN)

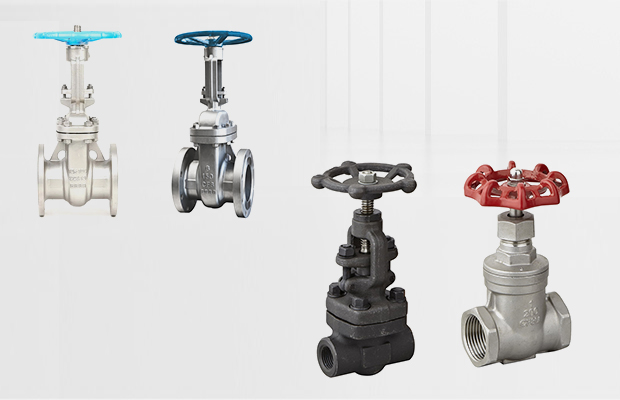

The SGON steel gate valve is a robust and reliable flow control device designed for precise regulation of fluid flow in demanding industrial environments. Utilizing a vertically movable gate that lifts and lowers within the valve body, it provides a tight seal and unrestricted flow when fully open, making it ideal for applications requiring minimal pressure drop. Available in both cast and forged constructions, SGON gate valves are engineered to withstand high pressures and temperatures, ensuring long-term performance and system safety.

Key Features:

Precision Flow Control: Rising stem design allows for accurate flow regulation and visual indication of valve position

High-Pressure and High-Temperature Capability: Rated for pressures up to Class 2500 (ANSI) or PN420 (DIN) and temperatures up to 600°C

Operational Efficiency: Available with handwheel, gearbox, or ISO 5211-compliant pneumatic/electric actuators for easy operation

Durability: Cast and forged constructions ensure resistance to high pressures, temperatures, and mechanical stress

Minimal Pressure Drop: Full-bore design provides unrestricted flow when fully open, reducing energy losses

Versatility: Suitable for a wide range of media, including water, oil, gas, steam, and corrosive chemicals

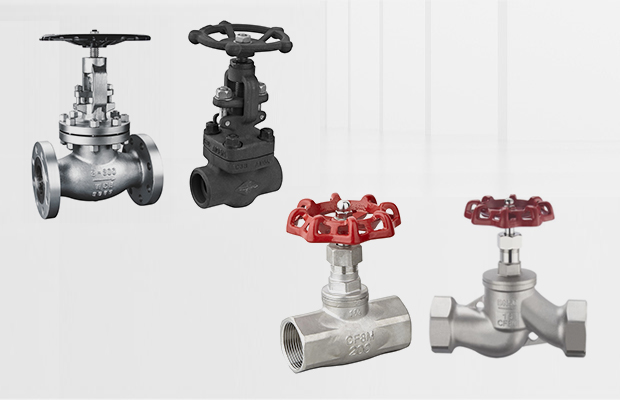

SGON offers high-quality Globe Valve, when the valve is opened or closed, the valve tongue moves up or down in the direction towards the valve seat,control the flow of  the media.Utilizing a vertically movable valve plug (disc) that moves toward or away from the valve seat, it provides exceptional throttling capabilities and tight shutoff, making it ideal for applications requiring fine flow adjustment and reliable sealing.

Key Features:

Precision Flow Control: Linear motion design allows for fine adjustment of flow rates, ideal for throttling applications

Robust Construction: Forged steel body ensures superior strength and resistance to high pressures and temperatures

Tight Shutoff: Precision-machined valve plug and seat provide bubble-tight sealing (ANSI/FCI 70-2 Class VI)

High-Pressure and High-Temperature Capability: Rated for pressures up to Class 2500 (ANSI) or PN420 (DIN) and temperatures up to 600°C.

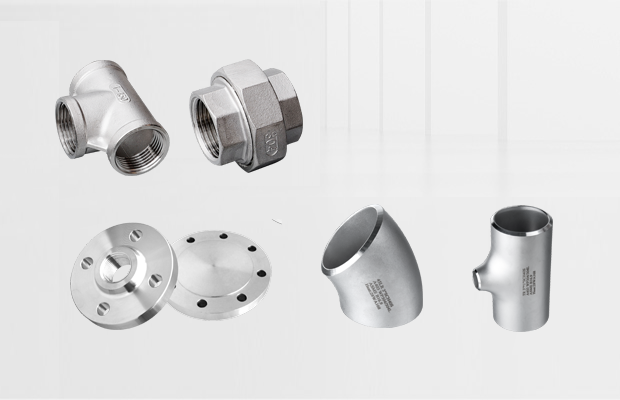

SGON also offers a wide range of high-quality products, including flanges, pipe fittings, and actuators. Made from premium materials and rigorously tested, these products ensure excellent performance, reliability, and durability across various applications. Beyond our standard offerings, we can also provide customized solutions to meet the diverse needs of our customers, ensuring flexibility and satisfaction.
